Car / bike DIY enthusiasts who need robust, weather‑proof wiring connections
Automotive electricians building or repairing harnesses
People adding aftermarket accessories (lights, sensors) and needing durable connectors
Workshop owners, garages, fabrication shops
Water‑resistant design ensures durability under moisture, rain, or road spray
5 pairs of male‑female connectors provide flexibility for multi‑wire harnesses
ABS / automotive‑grade housing for good mechanical strength and heat resistance
High current rating (~12 A) for safe power transmission in 12 V automotive circuits
Easy to crimp and assemble, ideal for DIY or professional use
Vibration-resistant – built for vehicle environments
Compact form factor — suitable for tight wiring runs
Strip the wire insulation properly (recommended length per terminal spec)
Insert the wire into the crimp terminal, ensuring full insertion
Use a proper crimping tool specific for 6.3 mm terminals to create a reliable crimp
After crimping, insert terminals into the ABS housing until they click to lock
Use the rubber seal (if provided) to ensure waterproof mating
Once mated, check for tightness; ensure no exposed metal or loose connection
For care: periodically inspect connectors, especially in exposed areas, for dirt or water ingress – clean and re‑seal if needed
When replacing, use terminals rated for same size and spec to maintain IP / current rating

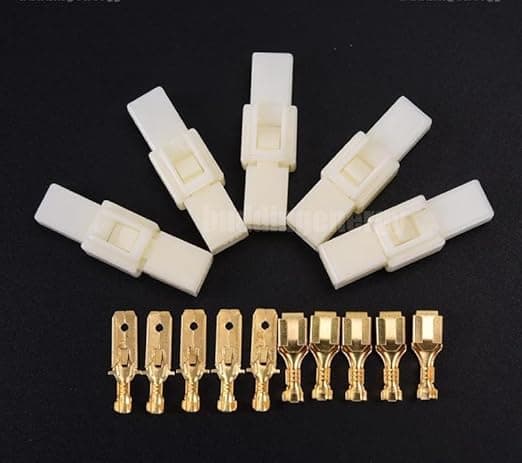

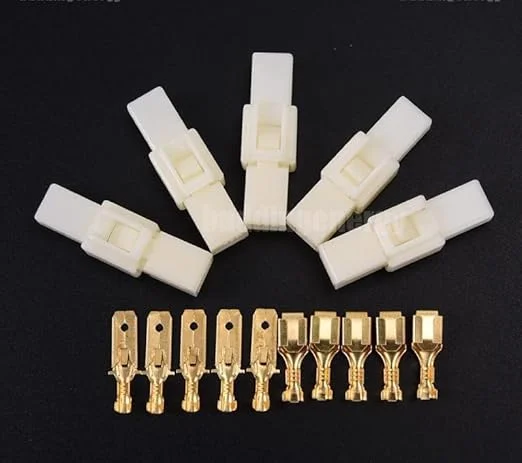

5 × male ABS housings (6.3 mm)
5 × female ABS housings (6.3 mm)
10 × crimp terminals (male + female)
10 × rubber seals / grommets (for waterproofing) – if similar to DJ‑series designs
(Optional / depending on supplier) Instructions or crimping guide
Pin Count & Pairs: Confirm you actually need 5 pairs; for smaller wiring, fewer pins may suffice.
Waterproof Rating: Check whether the supplier truly offers IP68 or similar rating – rubber seals must be present.
Wire Gauge Compatibility: Check the terminal spec sheet to ensure it suits your wire thickness.
Crimp Tool: Use a crimping tool designed for these terminals; poor crimping can lead to failure.
Heat / Durability: For long-term use in engine compartments, choose connectors with good temperature ratings.
Order Extra: Buy a few spare pairs — useful for future wiring or replacements.
Supplier & MOQ: Since these are relatively niche parts, check minimum order quantity, shipping cost, import duty, etc.
